HAS1 alarm sensor

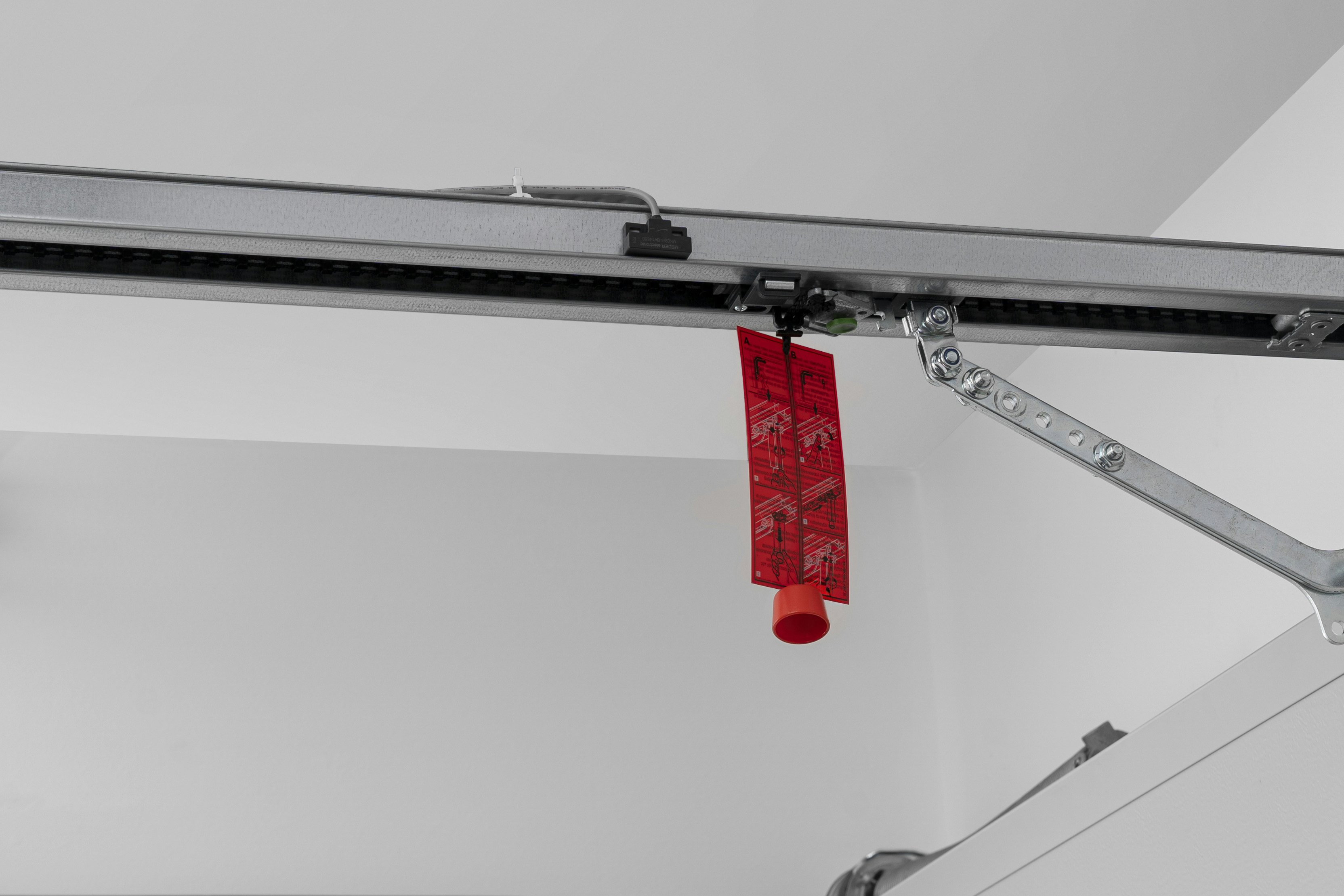

Our new HAS1 alarm sensor with alarm encoder for garage doors offers double security and reliable protection in the event of an attempted break-in. If the door is raised manually without having previously received a travel command, the alarm is triggered immediately. The principle also works when the garage door is in the ventilation position / partially open. The sensor or reed contact and the alarm encoder are attached to the HCP bus interface of Hörmann SupraMatic 4 or ProMatic 4 garage door operators using an adapter. Operation is simple: the reed contact registers when the magnet on the slide carriage of the operator travels over it and sends this information to the adapter. This only activates the alarm when the door is manually released without a travel command. Whether you open a closed door or push it open in the ventilation position, the alarm sensor sends a signal, providing additional security in addition to the anti-lift kit. An adapter, a sensor, a magnetic holder and an alarm encoder are included in the scope of delivery. This innovative alarm technology guarantees reliable protection and allows you to leave your home with peace of mind at any time.

• The new HAS1 alarm sensor with alarm encoder for garage doors for maximum security and reliable protection in the event of attempted break-ins
• Securing garage doors even in the ventilation position / partial opening
• The alarm is triggered immediately if the door is raised manually without a travel command
• Easy installation: the sensor and alarm encoder are attached to the HCP bus interface of the Hörmann SupraMatic 4 or ProMatic 4 operators via adapters
• Mode of operation: the reed contact on the sensor registers when the magnet on the slide carriage of the operator travels over it and informs the adapter; the alarm only activates if there is no travel command and manual release
• Scope of delivery: adapter, sensor, magnetic holder and alarm encoder
• CO₂-neutral as standard
• Already available
